Engineering Consultant, Quality Results

Engineering Consultant, Quality Results Engineering Consultant, Quality Results Engineering Consultant, Quality Results

Designing the future!

MM Design Services, LLC

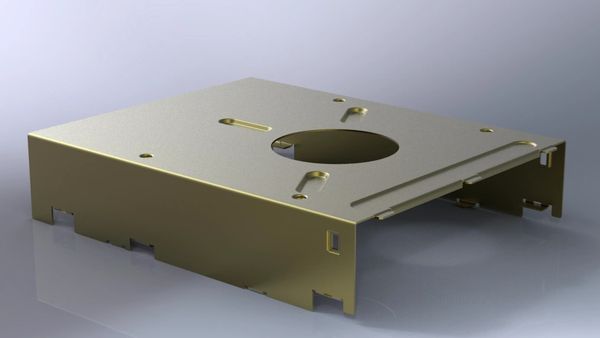

sheet metal CD enclosure

About Us

   Let MM Design elevate your ideas to the next step by providing you with high quality, detailed, computer-aided 3D models. Any object can be modeled to create photo realistic renderings for either presentations or detailed engineering prints for manufacturing.  We use PTC CREO, Blender and Dassault System's SolidWorks for CAD along with Luxion's KeyShot for renderings.

avionics assembly

Our Services

  We specialize in packaging electronics to meet stringent requirements or simple designs. We can design bent sheet metal for quick prototyping or aluminum housings to shield against electromagnetic interference. After approval for production, we can have it ordered, built and dropped shipped to your doorstep.

Find out more

Computer-Aided Design

 Modeling is the basics of any great design. We create a 3D solid model that depicts the design intent. The models, in various formats, allow manufacturing to create complex parts as well as simple parts for 3D printing.  Let us design your product and provide you with a manufacturing drawing package or even model based definition models that can aid the machine shop.

Drafting for Manufacturing

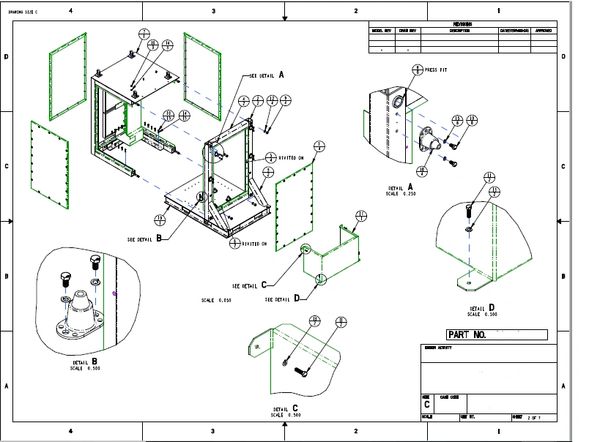

  MM Design offers drafting and detailing for creating drawing packages for manufacturing of parts and assemblies in accordance with ASME Y14.100.

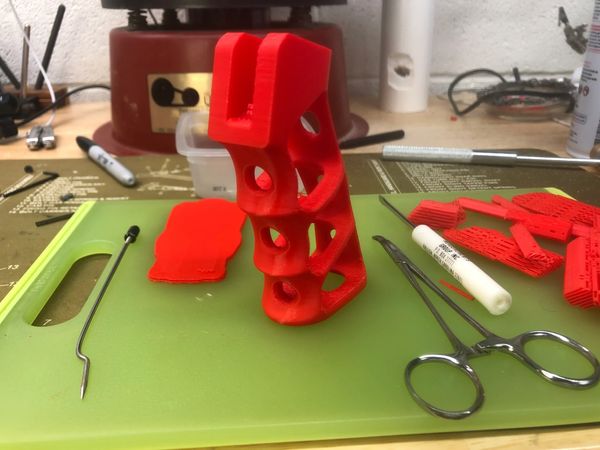

Additive Manufacturing

  Additive Manufacturing allows for highly complex structures that can still be extremely light and stable. It provides a high degree of design freedom, the optimization and integration of functional features, the manufacture of small batch sizes at reasonable unit costs and a high degree of product customization even in serial production. 3D printed models designed in CAD will result in less errors and the less material wasted at the printer. The following applications are just a few advantages of additive manufacturing.


  • Product Development
  • Data Visualization
  • Rapid Prototyping
  • Jigs, Fixtures & Gauges
  • Test Validation
  • Tooling

Reverse Engineering

  We can take any part, not having drawings in hand and come up with a 3D model design to provide you with drawings for manufacturing or a 3D printed part for rapid prototyping. Click image to see scanning of another part in real time.

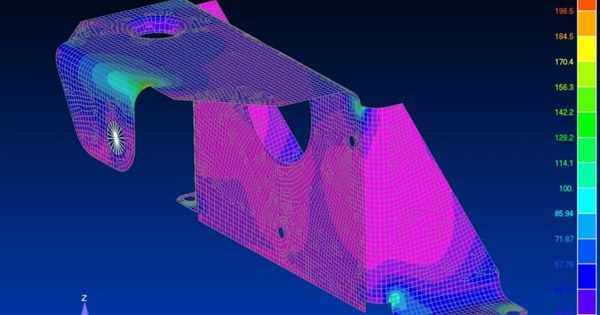

FEMAP heat map

Structural Analysis

  MM Design offers end-to-end structural analysis using FEMAP with NX NASTRAN. MM Design's structural engineer has over 10 years' experience performing structural analysis on military aircraft and launch vehicles. Services include:


  • Classical hand calculations
  • Finite Element Modeling (FEM)
  • Random Vibration Analysis
  • Bolted Joint Analysis

Tolerance Stack-Up Analysis

  Worst case tolerance stack-up analysis of low run assemblies to cut down design errors during manufacturing.

What's happening this week at MM Design Services

Page last updated 12/29/2022


Redesign of a failing casting part for a new client. Unfortunately, some clients frown on having their designs posted before rollout and I respect that.


Layout of avionics packaging for a repeat client.


Potential new client in the medical industry for the new year.


Capability Statement

Capability Briefing (pdf)

Download

Accreditation

Subscribe

Sign up to hear from us.
